RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor

$5,899.99

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor—

$5,899.99

The Story

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅ NSF Drinking Water and UL Compliant

Includes...

25HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
3" outlet 230RPS250 132-317GPM Pump End, 6" Outside Diameter
3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head	Gallons Per Minute (GPM)
No head	317
25 feet	317
50 feet	317
75 feet	317
100 feet	317
125 feet	317
150 feet	317
175 feet	317
200 feet	317
225 feet	295
250 feet	278
275 feet	262
300 feet	238
325 feet	207
350 feet	185
375 feet	159
400 feet	132
Above 400 feet	Size Up for Optimal Performance

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

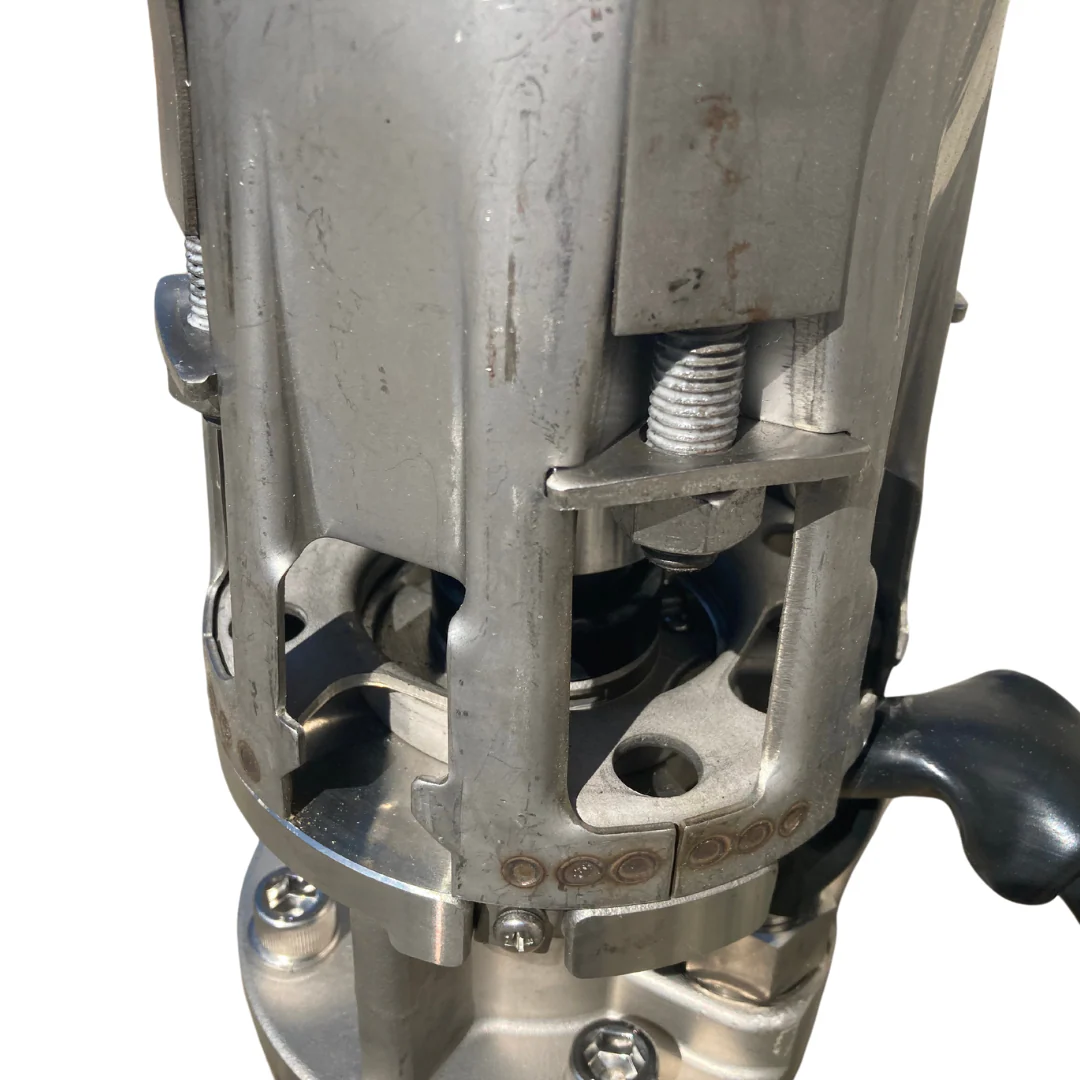

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

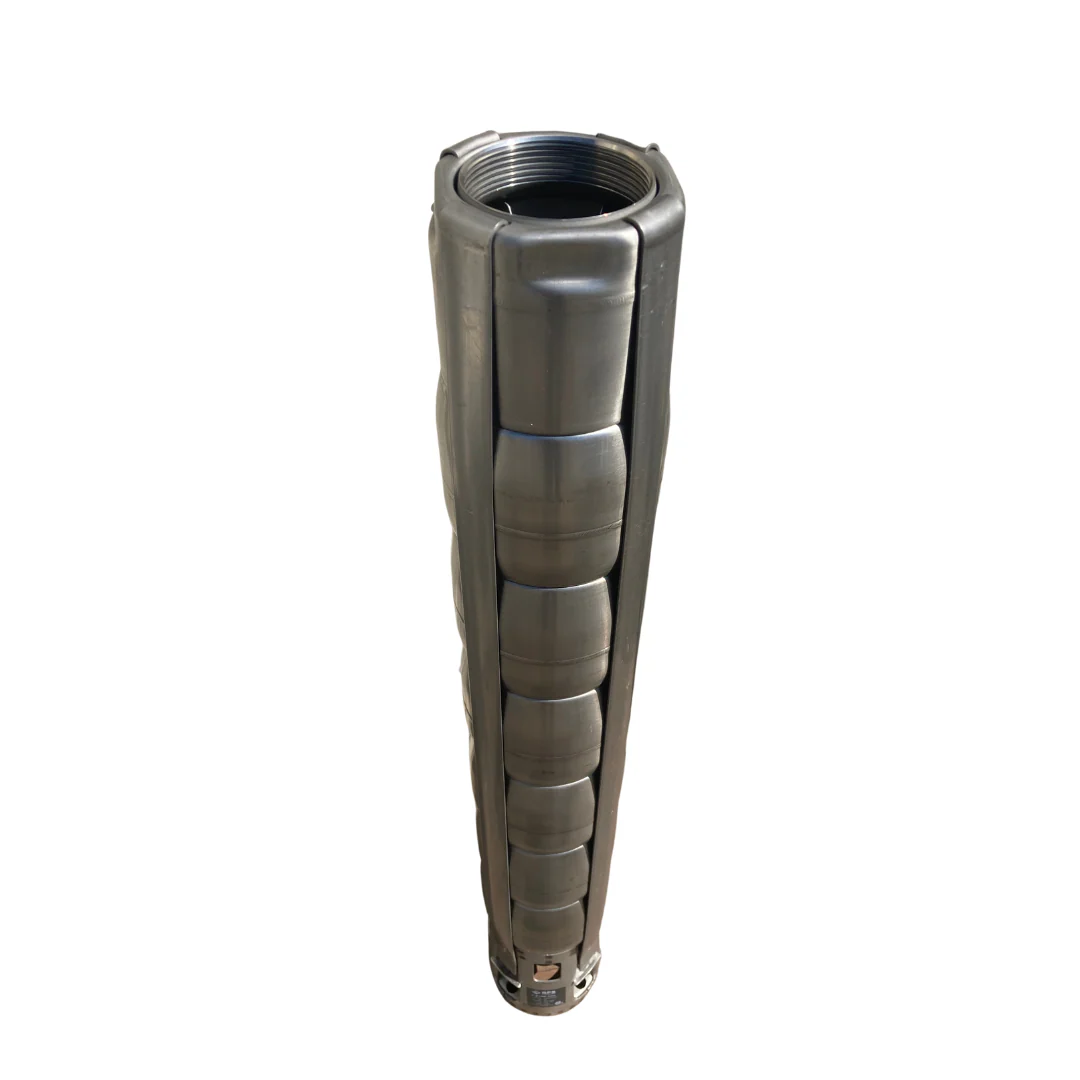

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

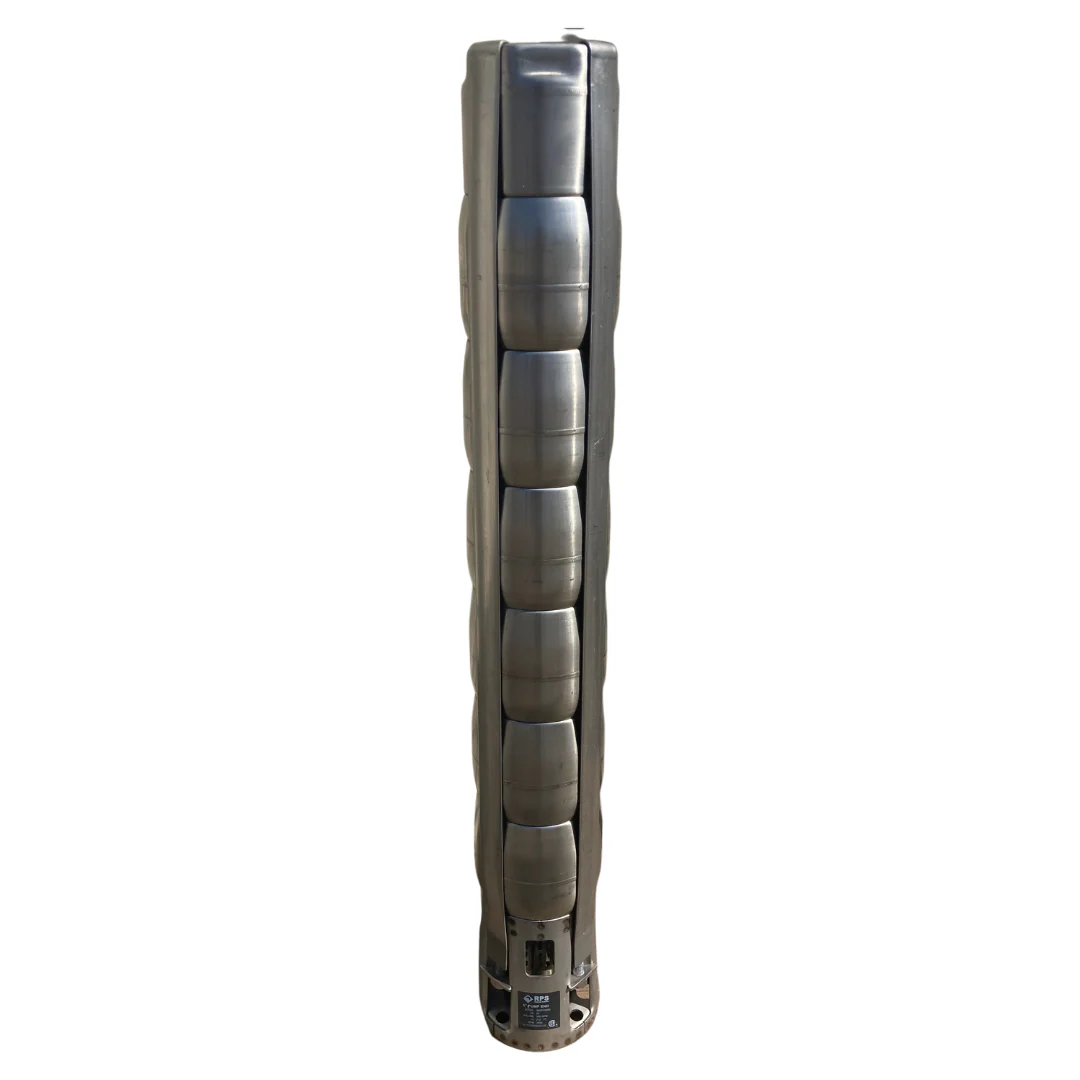

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

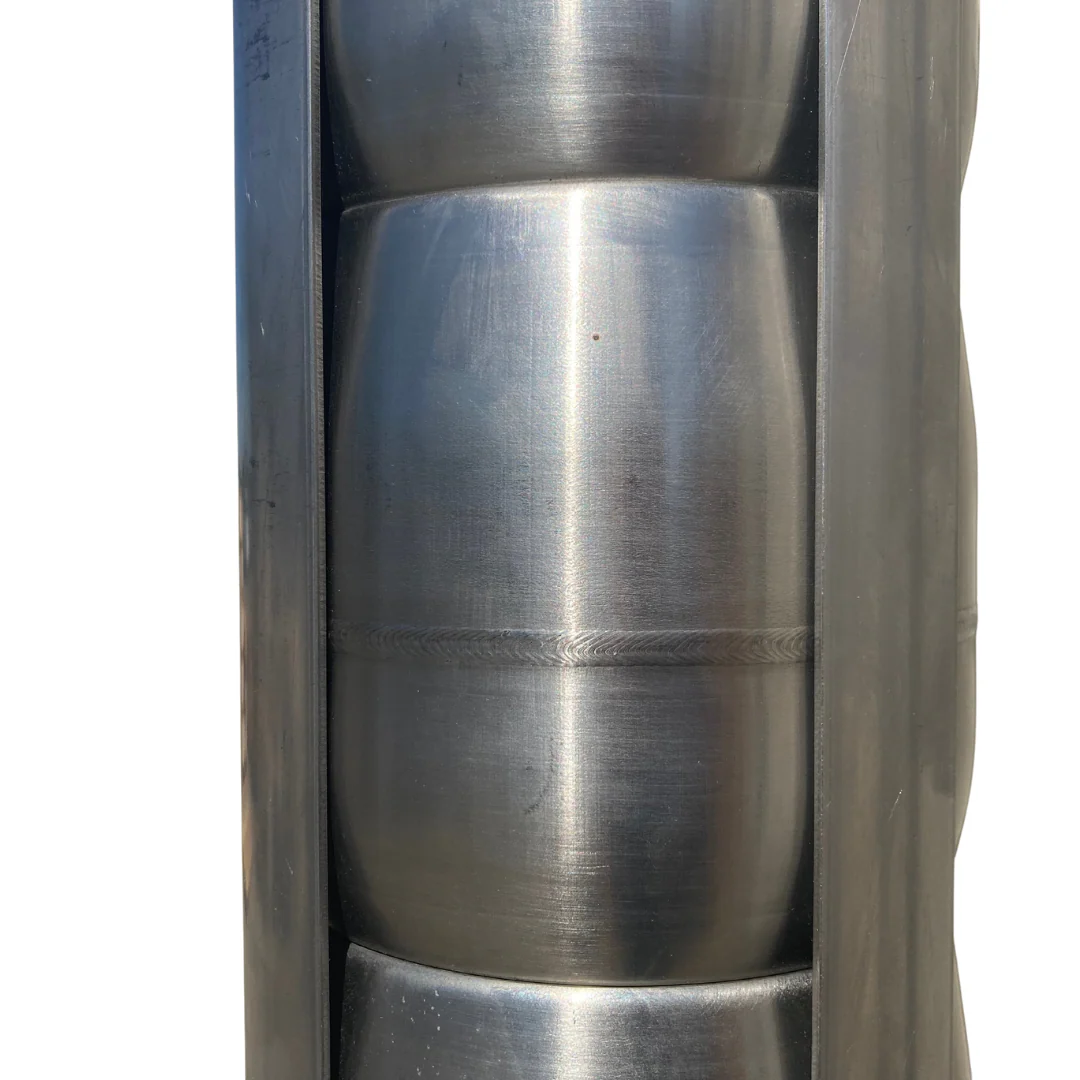

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

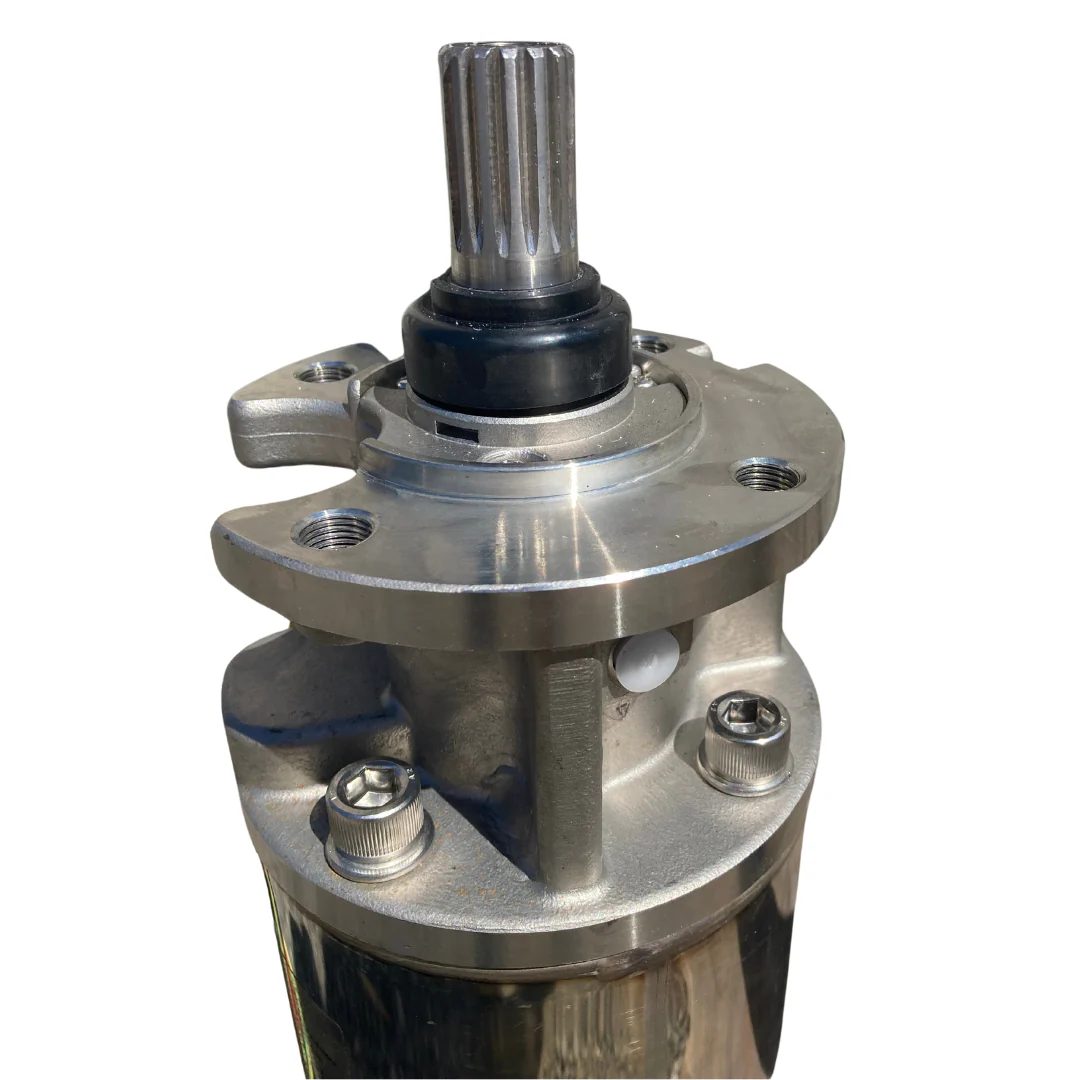

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

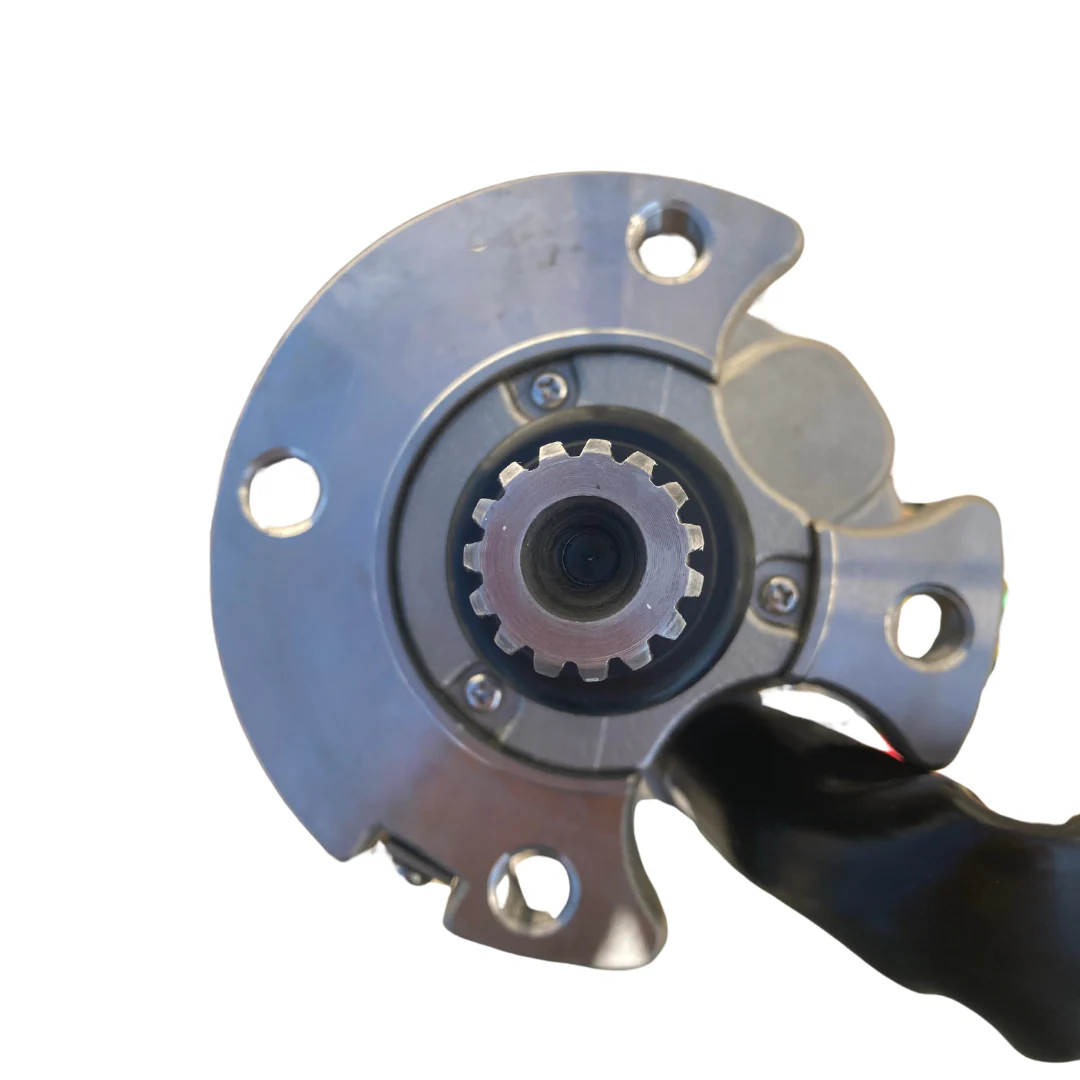

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

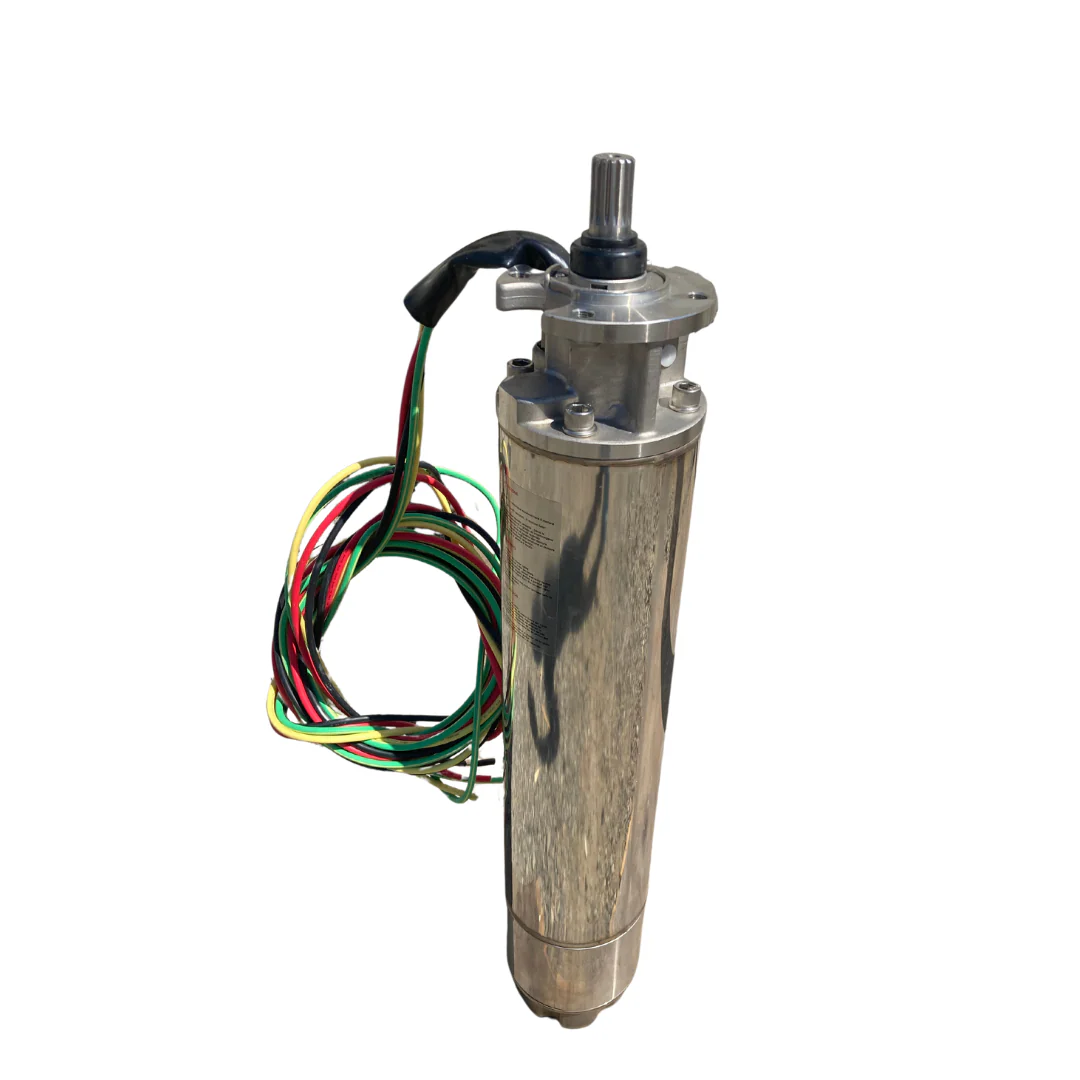

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

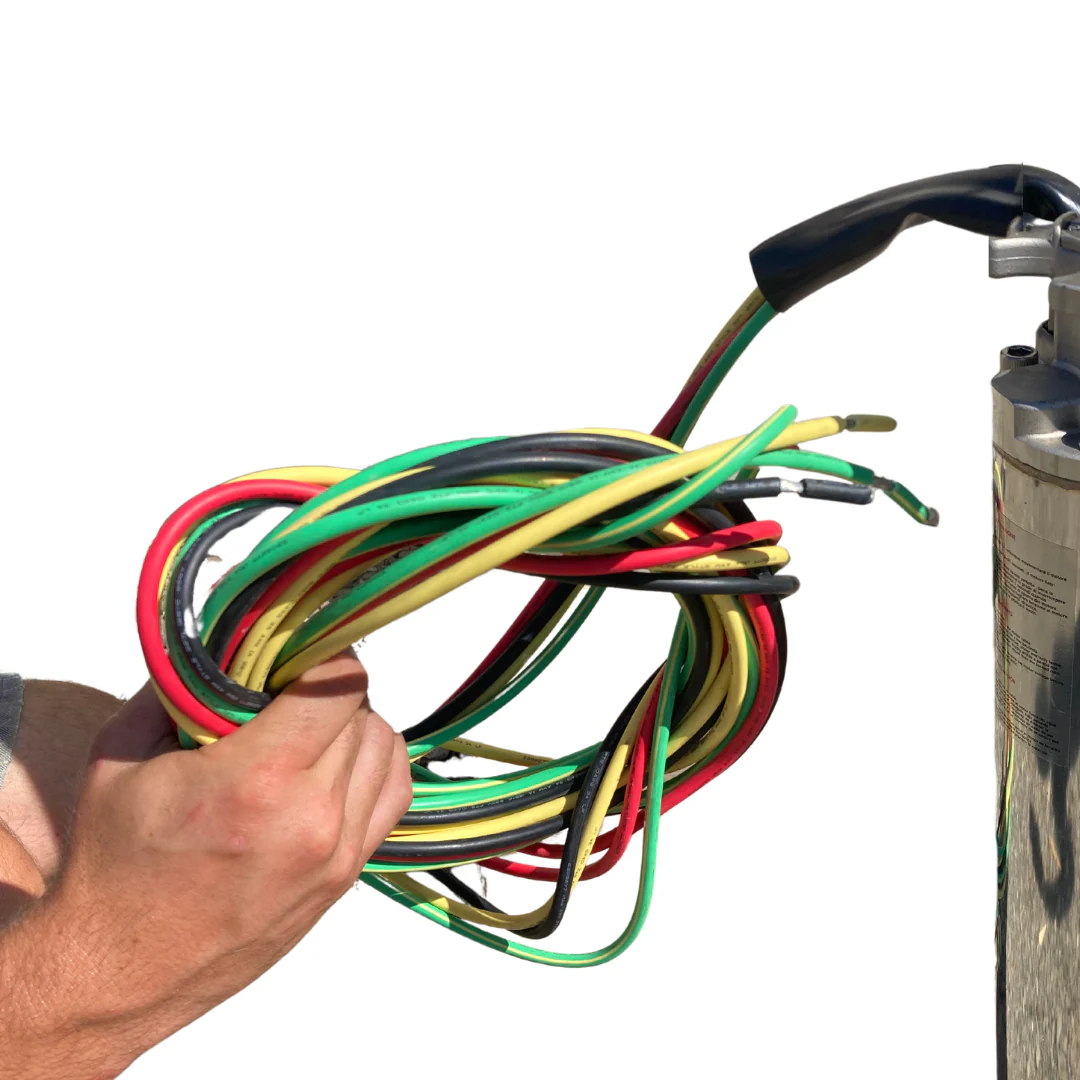

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 14

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

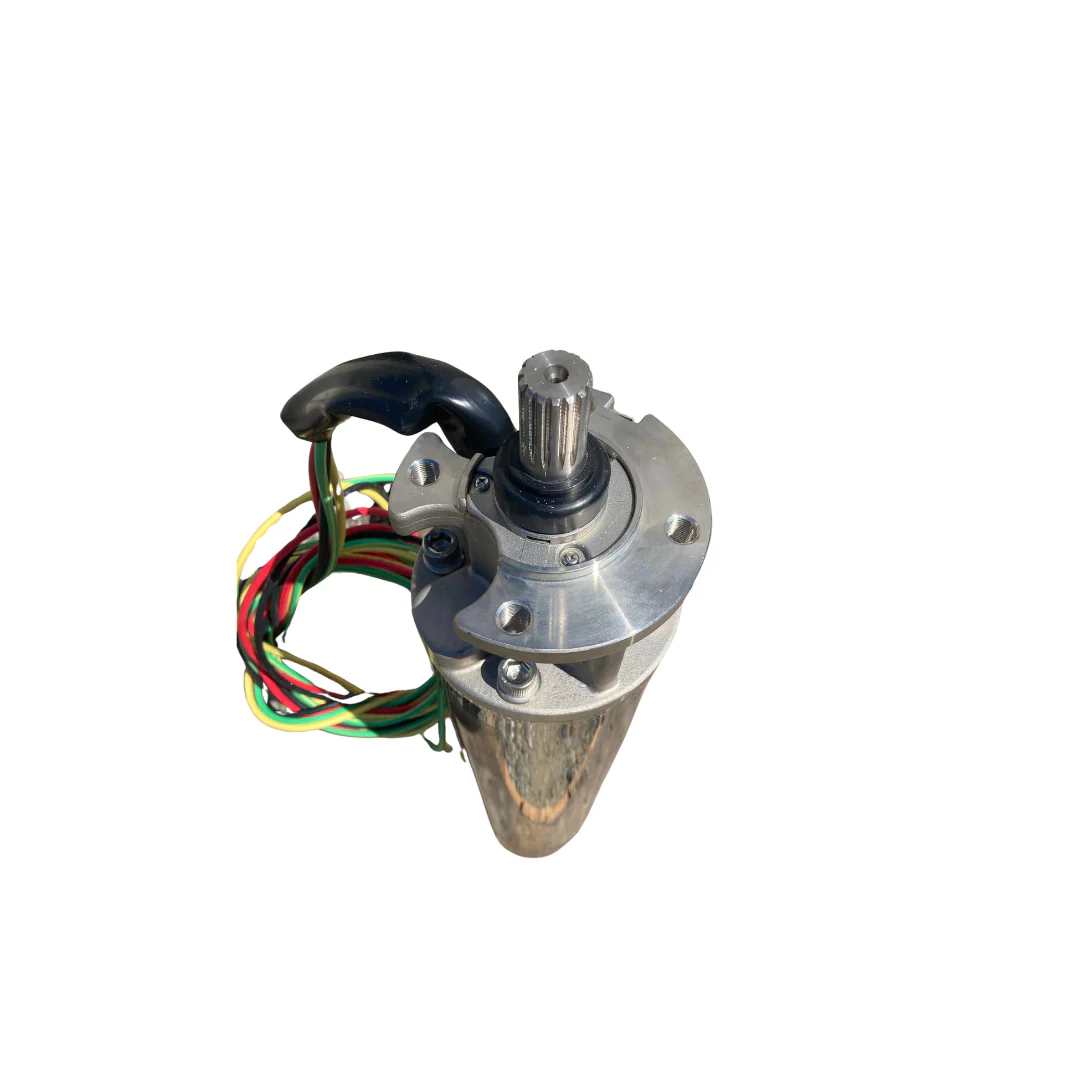

RPS 25HP 480V 230RPS250, Up to 400FT Head, 132 to 317GPM, Stainless Steel Submersible Pump End + Motor - Image 15

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅ NSF Drinking Water and UL Compliant

Includes...

25HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
3" outlet 230RPS250 132-317GPM Pump End, 6" Outside Diameter
3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head	Gallons Per Minute (GPM)
No head	317
25 feet	317
50 feet	317
75 feet	317
100 feet	317
125 feet	317
150 feet	317
175 feet	317
200 feet	317
225 feet	295
250 feet	278
275 feet	262
300 feet	238
325 feet	207
350 feet	185
375 feet	159
400 feet	132
Above 400 feet	Size Up for Optimal Performance
